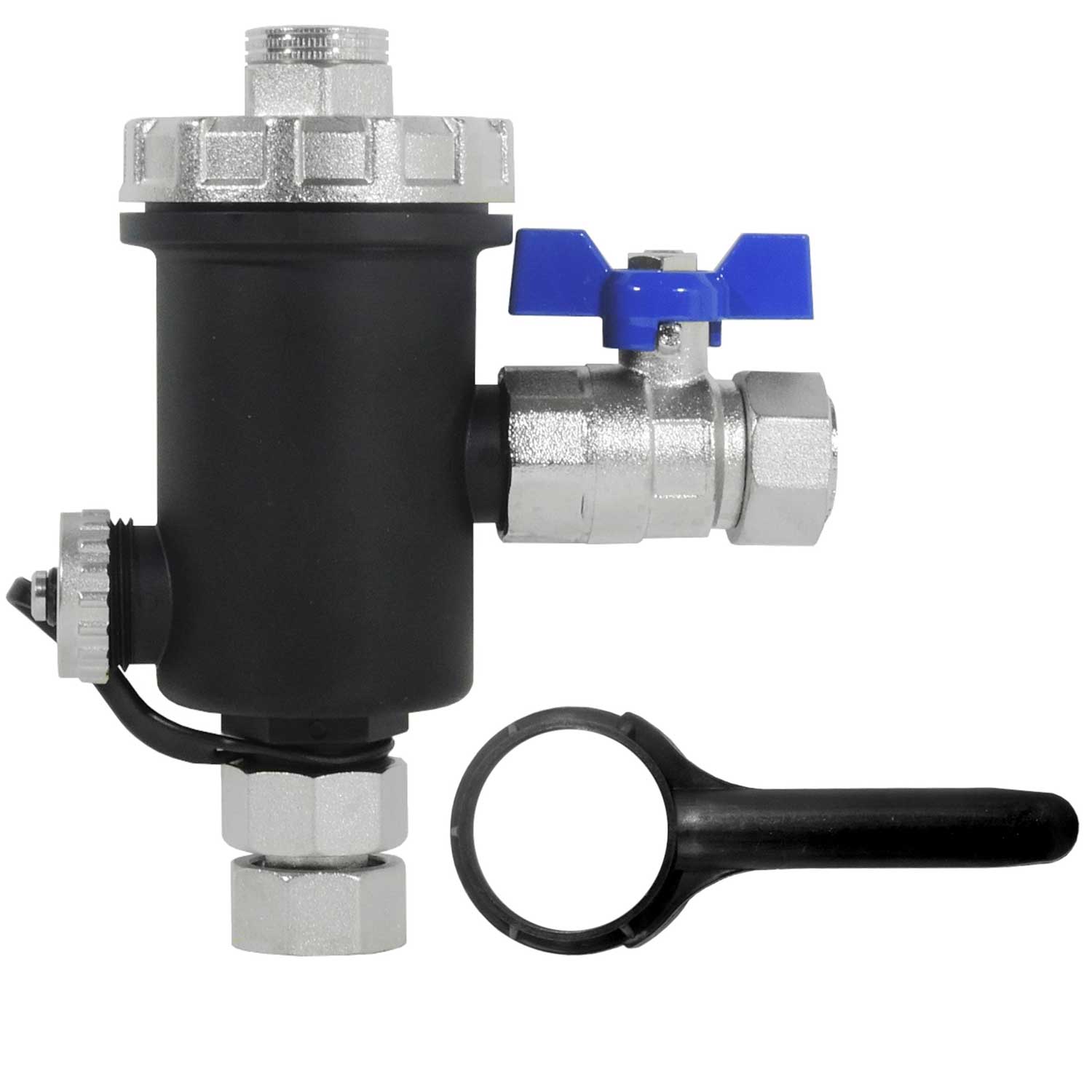

Magnetic separator is used to remove water contaminants in domestic central heating systems, especially sand and rust particles. Non wanted waste in the circuit can accelerate the wear of the water pump, valves and other components of the whole system. Dirt can also block heat exchangers, radiator or pipe ends, reducing the efficiency of the heating.
Due to its special design, the separator can be installed horizontally or vertically. It enables excellent filtration and the deposition of impurities in the filter tank. Removal of contamination can occur during normal operation of the installation.
Specification:
- Magnetic separator for central heating systems;
- Perfect for sand and rust particles;
- Body material: glass fibre reinforced nylon;
- Stainless steel filter mesh;
- 9000G neodymium magnet;
- Temperature range: 0-90C;
- Max. inlet pressure: 4 bar;
- Max. water flow: 1.5 m3/h;

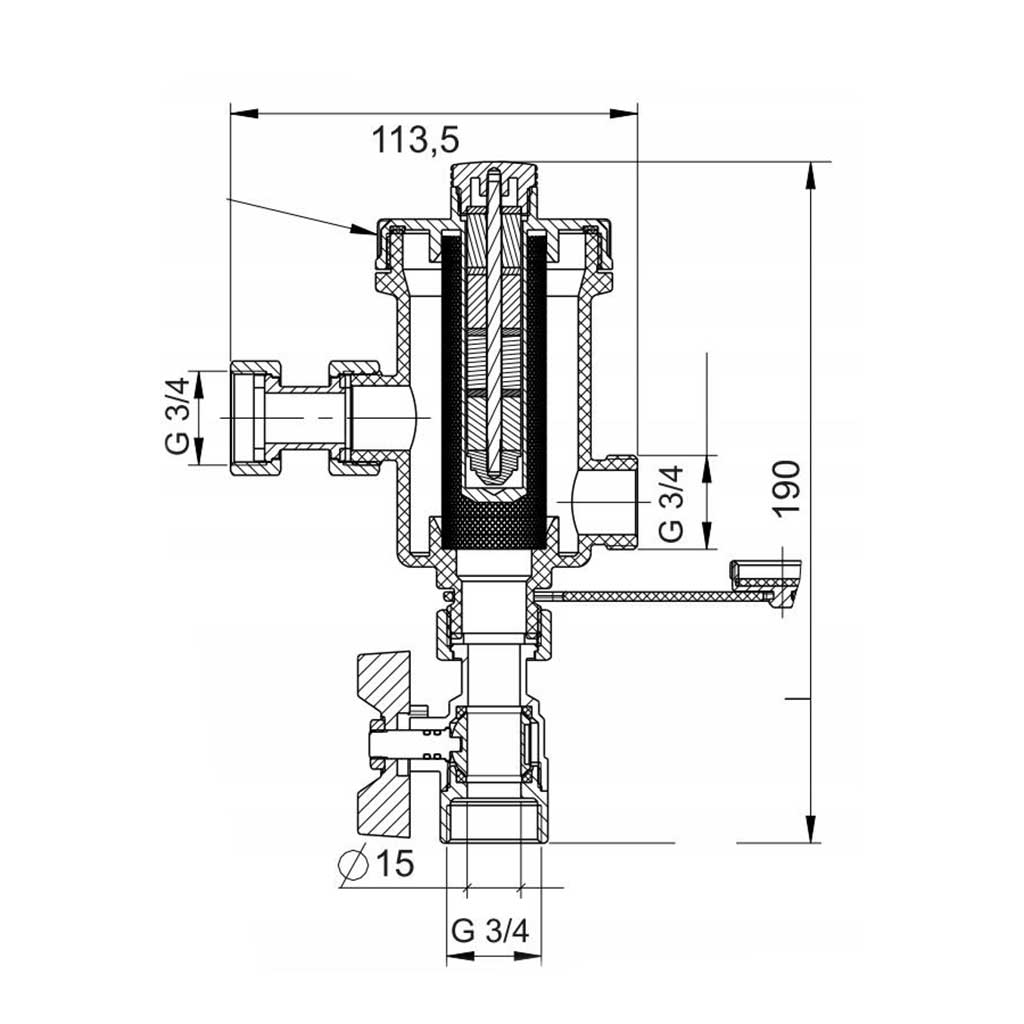

- Connection: 3/4" BSP Female x 3/4" BSP Female x 3/4" BSP Female;
- Sealing: EPDM;
- Installation: vertical or horizontal pipelines.
