Cast iron made pipe repair clamp suitable for sealing damaged steel pipes in water supply installations. Various sizes are available starting from 3/8" inch (17-18mm pipe diameter) ending with clamps for 4" pipes which are suitable for113-115mm pipe diameters.

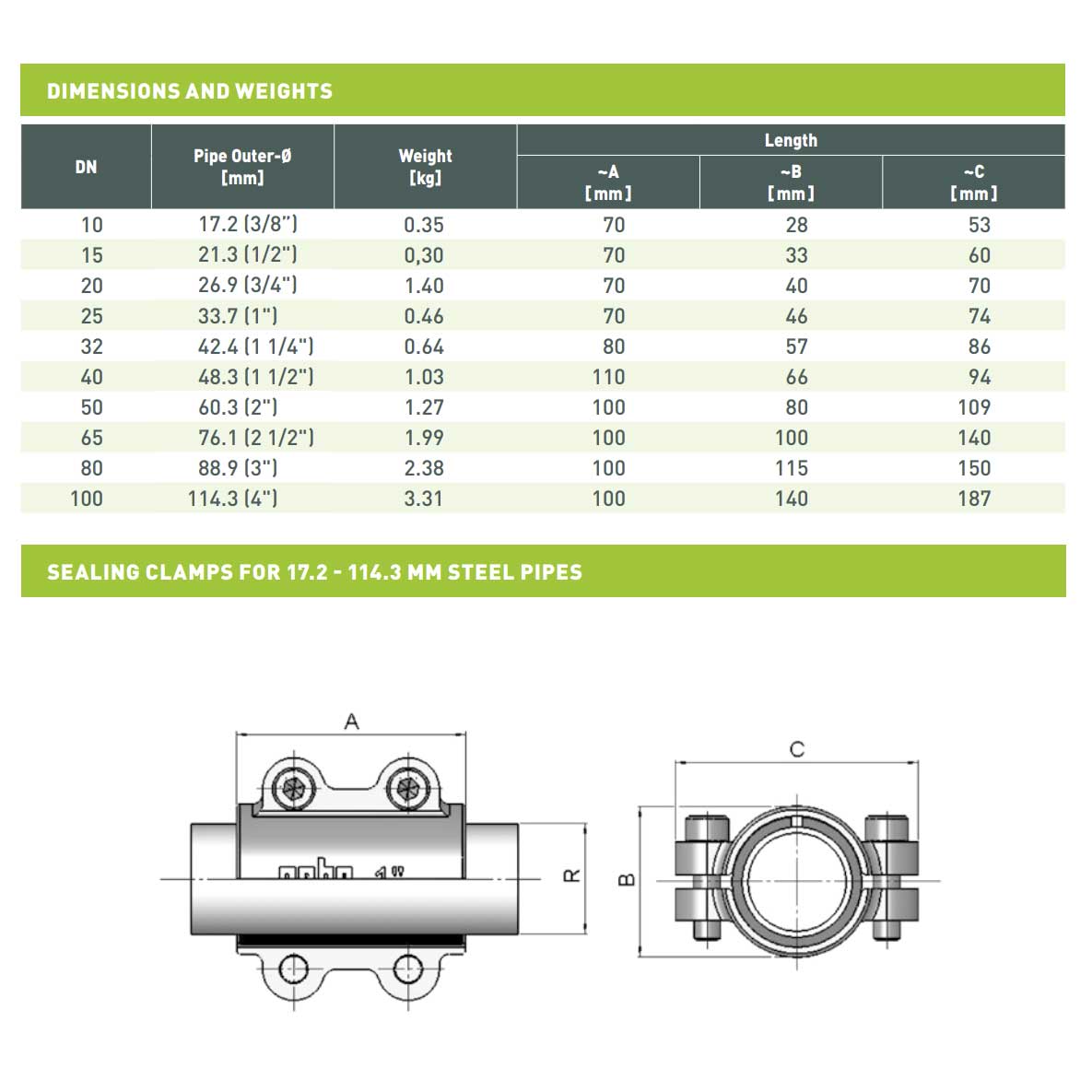

Check sizing table to pick correct clamp size.
- Size: 3/8", 1/2", 3/4", 1", 5/4" (1 1/4"), 6/4" (1 1/2"), 2", 10/4" (2 1/2"), 3" or 4" BSP;
- Length of pipe repair clamp depends on its size and it is 70mm for 3/8", 1/2", 3/4" and 1" sizes; 80mm for 1 1/4" clamp size; 100mm for 1 1/2" , 2", 2 1/2", 3" and 4" clamp sizes;
- Maximum operating pressure of 16 bar;
- Maximum operating temperature 90C;
Materials used:
- Top and bottom part: black malleable cast iron;
- Sealing sleeve: EPDM rubber;
- Steel bolts.
