Pressure reducing valves are installed in water systems to reduce and stabilise inlet pressures from mains water supplies or boosted water systems.

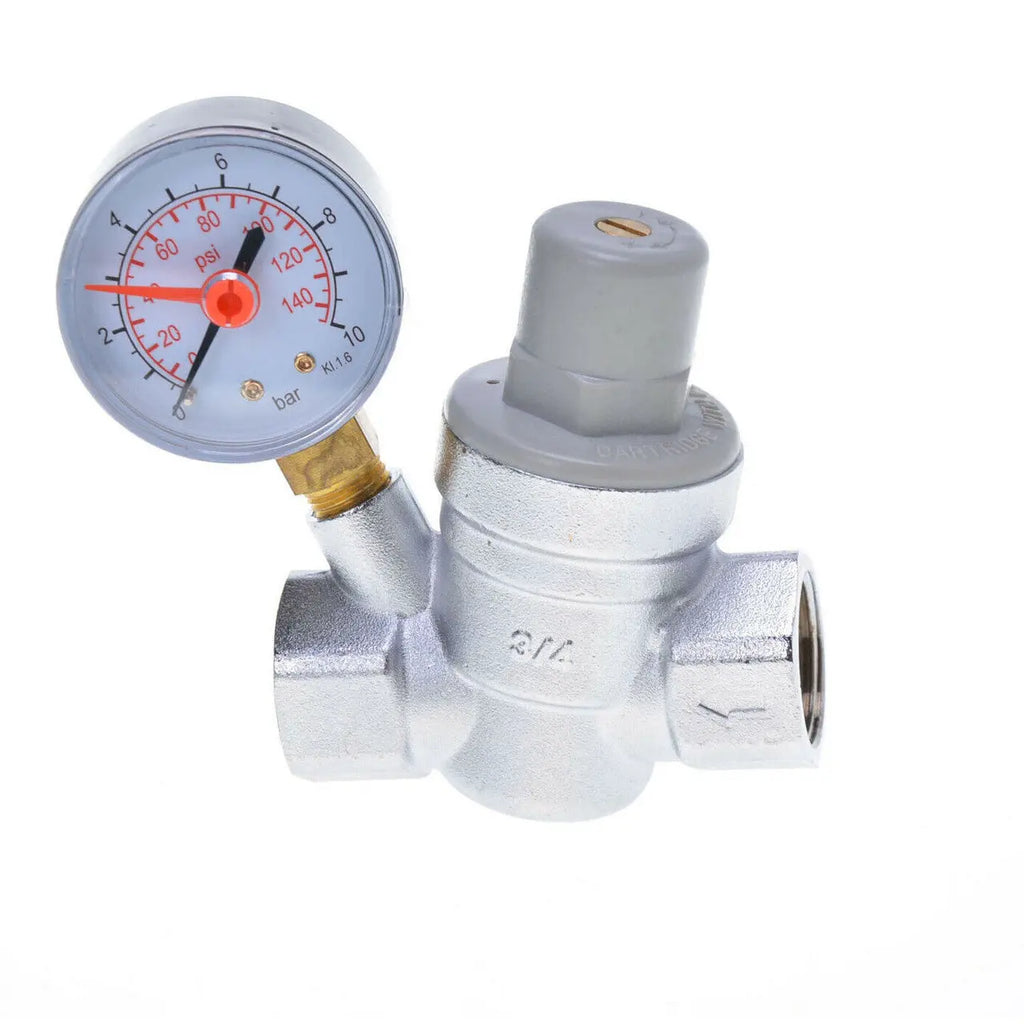

PRV pressure reducing valve comes complete with a gauge and is designed for hot and cold water services in domestic or semi commercial applications. A pressure reducing valve can be installed on hot and cold supplies to prevent excessive pressure at water outlets such as taps and showers.

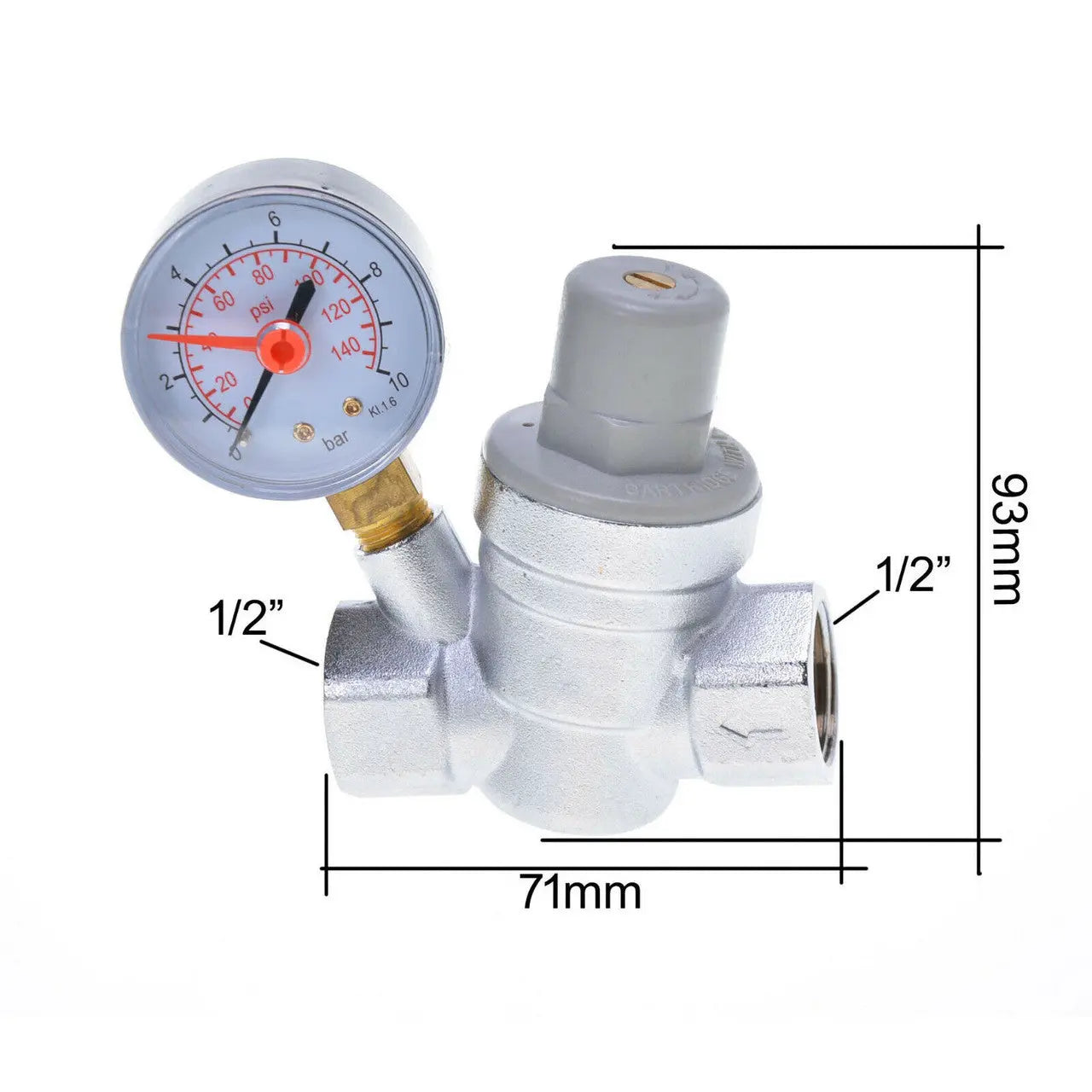

To Suit Pipe Work: 15mm (1/2" BSP) /22mm(3/4"BSP)Copper Pipe;
Maximum Pressure at Inlet: 16 bar;
Outlet Adjustment Range: 1 to 6 bar;
Factory Setting: 3 bar;
Maximum Working Temperature: 70C;
Pressure Gauge Connection: 1/4" BSP;
Pressure Gauge Reading: 0 to 10 bar;
